性能特点Features

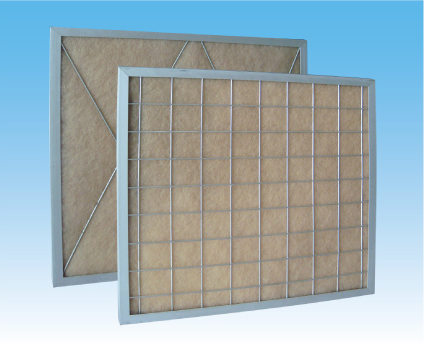

外框:可整卷或裁片供应,亦可加装镀锌框或铝合金框
滤料:日本滤料,由高性能抗断的合成纤维过滤材料组成,递增结构,容尘量大,效率高,不含硅。
效率:(EN779:2002 filter class)G4
(ASHRAE 52.2:2007 filter class)MERV7
Frame:Supply of the entire volume Or plus galvanized border or aluminum alloy frame
Media:
Original Japanese import filter。 the filter mats are Made of high
performance polyester fibers with durable thermal bonding Increment
structure, large dust capacity,Not silicon
Efficiency:(EN779:2002 filter class)G4
(ASHRAE 52.2:2007 filter class)MERV7
应用Applications
用于超净烘箱,超净清洗机,化工行业等要求高温空气净化的设备及系统
Suitable
for clean drying oven,clean washing machine,chemical industry and other
high-temperature air purification equipments and systems
常用规格 Common Specifications
型号 | 尺寸 | 克重 | 厚度 | 耐热温度 | 难燃性 | 再生 | 风速 | 压损 | 平均除尘率 | 容尘量 | |||
Model | Size | Weight | Thickness | Heat Temperature | Flame Retardancy | Regeneration | Air Flow | Pressure Drop | Average Dust Removal Efficiency | DHC | |||
mm | g/m² | mm | ℃ | O=可 | O=可 | m/s | 初期
| 最终 | (%) | g/m² | |||
SAI-100W | 500×500 | 240 | 20 | 240 | O | X | 1.0 | 42 | 390 | 90.0 | 470 |
1、若遇规格、结构变更,以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
