性能特点Features
A)可供高温场所使用
B)可清洗
C)初始阻力低
D)结构结实
E）聚尘率高，使用寿命长
F）结构轻巧，易于安装
Features：
A) High acid and alkali resistance
B) Washable
C) Low initial resistance
D) Firm structure
E）High dust holding capacity and long service life
F）Lightweight and easy to install

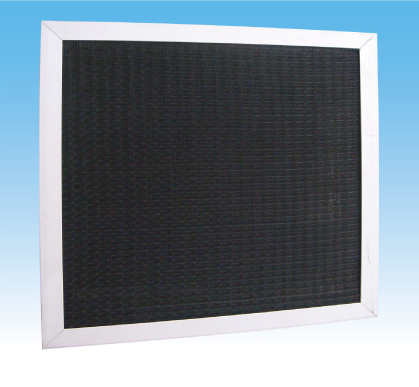

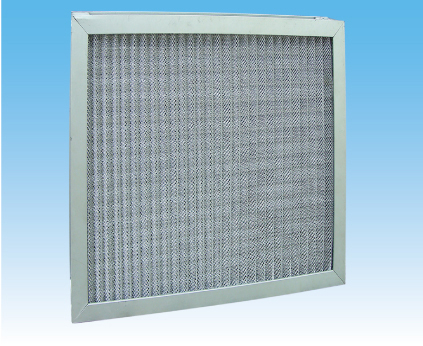

Frame:aluminum alloy frame.
Media:eAluminum
or stainless steel net,asy to install and maintain, High absorb
capacity ,nice performance ,low operation Cost,low
resistance,washable-reusable aluminum net,long life span.
Efficiency:(EN779:2002 filter class)G3,G4,F5
(ASHRAE 52.2:2007 filter class)MERV7,MERV8,MERV9.
Recommended final pressure drop:250Pa.
外框:可拆卸铝型材。
滤料: 采用多层波浪形扩张铝网或不锈钢网彼此交叉叠合排列而成，多层金属网是以不同的密度，不同孔径排列，使空气通过滤网时多次改变流动方向，增大其捕尘能力及效率。阻力低使用寿命长，可反复清洗，经济性高。
效率：（EN779:2002）G3,G4
（ASHRAE 52.2:2007）MERV6,MERV7。
建议终压损:250Pa.
应用 Applications
一般建筑大楼空调之粗尘过滤系统
工业级空气通风设备之初级过滤
要求耐酸碱，强度高，耐高温的通风系统
汽车总装车间的喷蜡房过滤
Building air conditioning primary filtration system
The primary filter of industrial-grade ventilation systems
widely used in industry,M-NET is the most economical ventilation and direct ways
widely used in acid,alkali and high humidity environment
常用规格 Common Specifications
型号 Model | 外形尺寸Dimensions | 额定风速 Face Velocity (m/s) | 额定风量 Rated Air Flow (m3/h) | 初期压损 Initial Pressure Drop (Pa) |
W×L×D (mm) | ||||
SMW-20×10×2 | 492×238×46 | 2.5 | 1050 | 15 |
SMW-20×16×2 | 492×390×46 | 1720 | ||
SMW-20×20×2 | 492×492×46 | 2170 | ||
SMW-24×24×2 | 594×594×46 | 3170 | ||
SMW-25×16×2 | 619×390×46 | 2170 | ||
SMW-25×20×2 | 619×492×46 | 2740 |
Model | Dimensions | Face Velocity (m/s) | Rated Air Flow (m3/h) |
Initial Pressure Drop (Pa) |
W×L×D (mm) | ||||
SMW-20×10×2 | 492×238×46 | 2.5 | 1050 | 15 |
SMW-20×16×2 | 492×390×46 | 1720 | ||
SMW-20×20×2 | 492×492×46 | 2170 | ||
SMW-24×24×2 | 594×594×46 | 3170 | ||
SMW-25×16×2 | 619×390×46 | 2170 | ||
SMW-25×20×2 | 619×492×46 | 2740 |
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
上海新锐过滤材料有限公司
