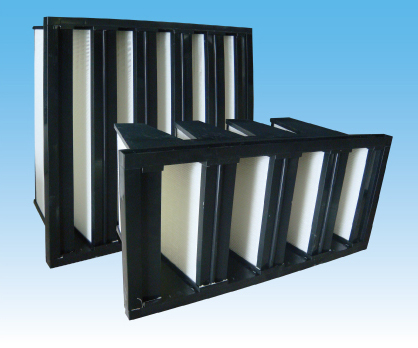

性能特点Features
外框：ABS工程塑料外框，镀锌框或不锈钢外框。
滤料：玻璃纤维；高容尘量，低阻力。
效率：（EN779:2002）F6,F7,F8,F9；
（ASHRAE 52.2:2007）MERV12,MERV13,MERV14,MERV15。
建议终压损：450Pa。
Frame:ABS plastic frame,Galvanized frame, aluminum frame, stainless steel frame.
Media: Using special glass fiber filter paper as the filter material,high dust-holding capacity,low initial resistance.
Efficiency:(EN779:2002)F6,F7,F8,F9；
(ASHRAE 52.2:2007)MERV12,MERV13,MERV14,MERV15.
Recommended final pressure drop:450Pa.
应用Applications
用于电子，生物制药，机械仪表，石化轻工等空气净化系统
作为HEPA的前道保护段过滤器
Suitable
for the electronics, bio-pharmaceutical, machinery,instrumentation,
petrochemical and light industry as general air purification systems.
As pre filters for hepa filters
常用规格 Common specifications
型号 | 外形尺寸 | 结构 | 框体 | 过滤面积 | 额定风量 | 初期压损 | |||
Model | Dimensions | Structure | Frame | Media Area | Rated Air Flow | Initial Pressure Drop (Pa) | |||
W*H*D | W*H*D(mm) | (m²) | (m³/h) | F6 | F7 | F8 | F9 | ||
SVM1212-ZV | 287*287*292 |
单凸 | 2V | 4.2 | 800 | 65 | 85 | 110 | 120 |
SVM1220-2V | 287*490*292 | 塑框/金属框 | 7.7 | 1200 | |||||
SVM1224-2V | 287*592*292 | 9.4 | 1600 | ||||||
SVM2012-3V | 492*287*292 | 3V
| 6.4 | 1000 | |||||
SVM2020-3V | 490*490*292 | 塑框/金属框 | 11.6 | 1800 | |||||
SVM2024-3V | 490*592*292 | 14.4 | 2200 | ||||||
SVM2414-3VF | 592*287*292 | 3V
| 6.4 | 1100 | |||||
SVM2420-3V | 592*490*292 | 塑框/金属框 | 11.6 | 1900 | |||||
SVM2424-3V | 592*592*292 | 14.4 | 2400 | ||||||
SVM2412-4V | 592*287*292 | 4V | 8.4 | 1600 | |||||
SVM2420-4V | 592*490*292 | 塑框/金属框 | 15.4 | 2500 | |||||
SVM2424-4V | 592*592*292 | 18.8 | 3200 | ||||||
SVM2412-5V | 592*287*292 | 5V | 10.5 | 1800 | |||||
SVM2420-5V | 592*490*292 | 塑框/金属框 | 19.0 | 3200 | |||||
SVM2424-5V | 592*592*292 | 23.5 | 3900 | ||||||
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
上海新锐过滤材料有限公司
