性能特点 Features

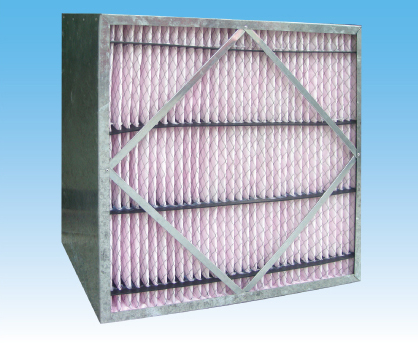

外框：镀锌框，铝框，或不锈钢外框。
滤料：聚脂合成纤维滤料；高容尘量，低阻力。
效率：（EN779:2002）F5，F6,F7,F8,F9；
（ASHRAE 52.2:2007）MERV10，MERV12， MERV13， MERV14，
MERV15
建议终压损：450Pa。
使用温度：常温。
Frame:Galvanized frame, aluminum frame, stainless steel frame.
Media: high performance synthetic fiber；high dust-holding capacity,low initial resistance.
Efficiency:(EN779:2002)F5,F6,F7,F8,F9；
(ASHRAE 52.2:2007) MERV10, MERV12, MERV13, MERV14,
MERV15
Recommended final pressure drop:450Pa.
应用Applications
用于电子，生物制药，机械仪表，石化轻工等空气净化系统
作为HEPA的前道保护段过滤器
Suitable
for the electronics, bio-pharmaceutical, machinery,instrumentation,
petrochemical and light industry etc general air purification systems.
As pre filters for hepa filters
常用规格 Common Specifications
型号 | 外形尺寸 | 过滤 面积 | 额定风 量 | 初期压损 | |||
Model | Dimensions | Media Area | Rated Air Flow | Initial Pressure Drop (Pa) | |||
W×H×D | W×H×D(mm) | (m²) | (m³/h) | F5
| F6
| F7
| F8 |
SWM-12×24×12 | 289×594×292 | 2.49 | 1700 | 37 | 68 | 115 | 158 |
SWM-24×24×12 | 594×594×292 | 4.98 | 3400 | 37 | 68 | 115 | 158 |
SWM-12×24×6 | 289×594×140 | 1.04 | 1020 | 52 | 73 | 140 | 178 |
SWM-24×24×6 | 594×594×140 | 2.09 | 2040 | 52 | 73 | 140 | 178 |
SWM-12×24×12 | 289×594×292 | 2.03 | 1700 | 42 | 83 | 120 | 170 |
SWM-24×24×12 | 594×594×292 | 4.35 | 3400 | 42 | 83 | 120 | 170 |
SWM-12×24×6 | 289×594×140 | 0.85 | 1020 | 60 | 88 | 145 | 182 |
SWM-24×24×6 | 594×594×140 | 1.83 | 2040 | 60 | 88 | 145 | 182 |
备注：1、性能初阻力公差为±10 2、可提供特殊尺寸制作 | |||||||
Dimensions | Media Area | Rated Air Flow | Initial Pressure Drop (Pa) | ||||
W×H×D | W×H×D(mm) | (m²) | (m³/h) | F5
| F6
| F7
| F8 |
SWM-12×24×12 | 289×594×292 | 2.49 | 1700 | 37 | 68 | 115 | 158 |
SWM-24×24×12 | 594×594×292 | 4.98 | 3400 | 37 | 68 | 115 | 158 |
SWM-12×24×6 | 289×594×140 | 1.04 | 1020 | 52 | 73 | 140 | 178 |
SWM-24×24×6 | 594×594×140 | 2.09 | 2040 | 52 | 73 | 140 | 178 |
SWM-12×24×12 | 289×594×292 | 2.03 | 1700 | 42 | 83 | 120 | 170 |
SWM-24×24×12 | 594×594×292 | 4.35 | 3400 | 42 | 83 | 120 | 170 |
SWM-12×24×6 | 289×594×140 | 0.85 | 1020 | 60 | 88 | 145 | 182 |
SWM-24×24×6 | 594×594×140 | 1.83 | 2040 | 60 | 88 | 145 | 182 |
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
