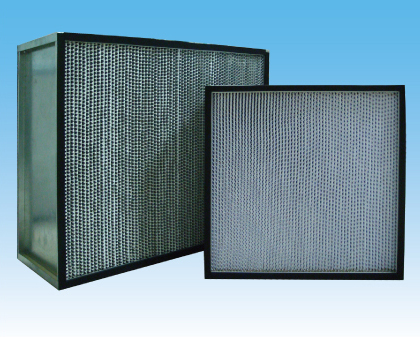

性能特点 Features
外框：镀锌框，铝框或不锈钢框。
滤料：玻璃纤维；铝箔或纸间隔片。
效率：（EN779:2002）H10，H13，H14
（ASHRAE 52.2:2007）MERV16，MERV17，MERV19。
每个滤器经严格检测。
建议终压损：450Pa。
使用温度：常温。
Frame:Galvanized frame, aluminum frame, stainless steel frame.
Media: Using special glass fiber filter paper as the filter material,
Using special aluminum foil or offset paper as separator.
Efficiency:(EN779:2002)H10,H13,H14
(ASHRAE 52.2:2007)MERV16,MERV17,MERV19.
Each filter is through rigorous testing
Recommended final pressure drop:450Pa.
应用Applications
主要用于电子、医药行业和医院等要求高洁净度的场合的终端过滤
Suitable for electronics, pharmaceutical industry, hospital, and theoccasions required the high cleanliness terminal filtration.
常用规格 Common Specifications
型号 Model
| 外形尺寸 Dimensions
| 过滤面积 Media Area (m2) | 额定风量 Rated Air Flow (m3/h) | 初期压损 Initial Pressure Drop (Pa)
(Pa) | ||||
W×H×D(mm) | 标 准 | 高风量 | 标 准 | 高风量 |
H10
| H13 | H14 | |
SHH320 | 320×320×220 | 4.1 | 6.1 | 350 | 525 | 90 | 130 | 140 |
SHH484/10 SHH484/15 | 484×484×220 | 9.6 | 14.4 | 1000 | 1500 | |||
726×484×220 | 14.6 | 21.9 | 1500 | 2250 | ||||
SHH484/20 | 968×484×220 | 19.5 | 29.2 | 2000 | 3000 | |||
SHH630/05 | 315×630×220 | 8.1 | 12.1 | 750 | 1200 | |||
SHH630/10 | 630×630×220 | 16.5 | 24.7 | 1500 | 2250 | |||
SHH630/15 | 945×630×220 | 24.9 | 37.3 | 2200 | 3300 | |||
SHH630/20 | 1260×630×220 | 33.4 | 50.1 | 3000 | 4500 | |||
SHH610/03 | 305×305×150 | 2.4 | 3.6 | 250 | 375 | |||
SHH610/05 | 305×610×150 | 5.0 | 7.5 | 500 | 750 | |||
SHH610/10 | 610×610×150 | 10.2 | 15.3 | 1000 | 1500 | |||
SHH610/15 | 915×610×150 | 15.4 | 23.1 | 1500 | 2250 | |||
SHH610/20 | 1220×610×150 | 20.6 | 30.9 | 2000 | 3000 | |||
SHH610/05X | 305×610×292 | 10.1 | 15.1 | 1000 | 1500 | |||
SHH610/10X | 610×610×292 | 20.9 | 31.3 | 2000 | 3000 | |||
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
上海新锐过滤材料有限公司
