性能特点Features

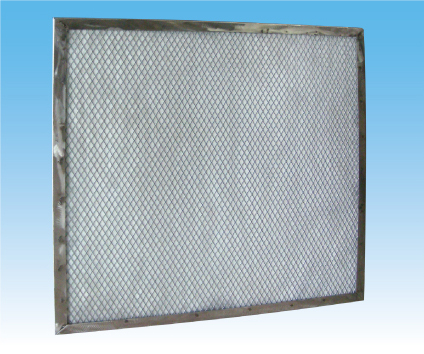

外框: 镀锌框，铝框，或不锈钢外框。
滤料: 耐温玻璃纤维丝,可做成折叠式或平板式二种方式
效率：（EN779:2002）G4,F5；
（ASHRAE 52.2:2007MERV7,MERV8。
建议终压损：250Pa。
Frame:Galvanized frame, aluminum frame, stainless steel frame.
Media:Using special glass fiber as the filter material，Optional folding, flat-plate.
Efficiency:(EN779:2002 filter class)G4，F5
(ASHRAE 52.2:2007 filter class)MERV7,MERV8.
Recommended final pressure drop:250Pa.
应用Applications
用于洁净烘箱，洁净清洗机，化工行业等要求高温空气净化的设备及系统
Suitable
for clean drying oven,clean washing machine, chemical industry and
other high-temperature air purification equipments and systems
常用规格 Common Specifications
型 号 Model | 外形尺寸Dimensions | 额定风量 Rated Air Flow (m3/h) | 初始压降 Initial Pressure Drop (Pa) | ||
宽×高×深(mm) | 平板式 | 折叠式 | 平板式 | 折叠式 | |
SHT-500×500×25 | 500×500×25 | 1000 | X | 50 | X |
SHT-500×500×50 | 500×500×50 | 1000 | X | 50 | X |
SHT-595×595×45 | 595×595×45 | X | 1500 | X | 45 |
SHT-595×595×90 | 595X595*90 | X | 1500 | X | 45 |
Model | Dimensions | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) | ||
W×H×D(mm) | Plate | Folding | Plate | Folding | |
SHT-500×500×25 | 500×500×25 | 1000 | X | 50 | X |
SHT-500×500×50 | 500×500×50 | 1000 | X | 50 | X |
SHT-595×595×45 | 595×595×45 | X | 1500 | X | 45 |
SHT-595×595×90 | 595X595*90 | X | 1500 | X | 45 |
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
