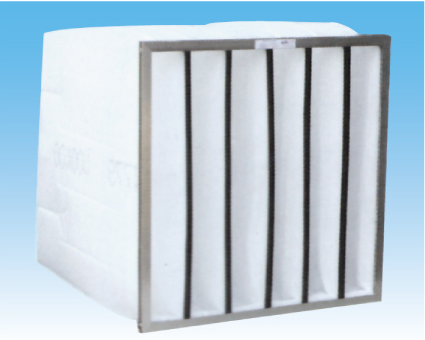

性能特点 Features
外框: 镀锌框，铝框，或不锈钢外框，可选厚度 21mm,25mm,46mm。
滤料: 聚脂合成纤维滤料；高容尘量，低阻力；超声波无缝密合。
效率：（EN779:2002）G4,F5，
（ASHRAE 52.2:2007）MERV8,MERV10。
建议终压损：450Pa。
Frame:Galvanized frame, aluminum frame, stainless steel frame，Frame can choose 21mm,25mm,46mm
Media:
high performance synthetic fiber；high dust-holding capacity,low initial
resistance；pockets are made from leak free ultra sonic machine.
Efficiency:(EN779:2002)G4,F5，
(ASHRAE 52.2:2007)MERV8,MERV10.
Recommended final pressure drop:450Pa.
应用Applications
一般建筑大楼空调之粗尘过滤系统
工业级空气通风设备之初级过滤
汽车总装车间的喷蜡房过滤
Building air conditioning primary filtration system
The primary filter of industrial-grade ventilation systems
widely used in industry,M-NET is the most economical ventilation and direct ways
常用规格 Common Specifications
型号 Model | 外形尺寸Dimensions | 袋数 No. of Pockets | 过滤面积Media Area (m2) | 各效率规格的初期压损/风量 Initial Pressure Drop (Pa) /@ Air Flow (m3/h) | ||
W×H×D (mm) | G3 | G4 | F6 | |||
SNP-24×24×15-6P | 592×592×381 | 6 | 3.3 | 25/2500 40/3600 | 35/2500 60/3600 | 80/2500 |
SNP-20×24×15-5P | 490×592×381 | 5 | 2.7 | 25/2100 40/3000 | 35/2100 60/3000 | 80/2000 |
SNP-12×24×15-3P | 287×592×381 | 3 | 1.6 | 25/1250 40/1800 | 35/1250 60/1800 | 80/1250 |
SNP-24×24×22-6P | 592×592×558 | 6 | 4.6 | 25/3800 40/5400 | 35/3800 60/5400 | 55/2500 85/3600 |
SNP-20×24×22-5P | 490×592×558 | 5 | 4.1 | 25/3200 40/4500 | 35/3200 60/4500 | 55/2000 85/3000 |
SNP-12×24×22-3P | 287×592×558 | 3 | 2.3 | 25/1900 40/2700 | 35/1900 60/2700 | 55/1250 85/1800 |
Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) /@ Air Flow (m3/h) | ||
W×H×D (mm) | G3 | G4 | F6 | |||
SNP-24×24×15-6P | 592×592×381 | 6 | 3.3 | 25/2500 40/3600 | 35/2500 60/3600 | 80/2500 |
SNP-20×24×15-5P | 490×592×381 | 5 | 2.7 | 25/2100 40/3000 | 35/2100 60/3000 | 80/2000 |
SNP-12×24×15-3P | 287×592×381 | 3 | 1.6 | 25/1250 40/1800 | 35/1250 60/1800 | 80/1250 |
SNP-24×24×22-6P | 592×592×558 | 6 | 4.6 | 25/3800 40/5400 | 35/3800 60/5400 | 55/2500 85/3600 |
SNP-20×24×22-5P | 490×592×558 | 5 | 4.1 | 25/3200 40/4500 | 35/3200 60/4500 | 55/2000 85/3000 |
SNP-12×24×22-3P | 287×592×558 | 3 | 2.3 | 25/1900 40/2700 | 35/1900 60/2700 | 55/1250 85/1800 |
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1.If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
上海新锐过滤材料有限公司
