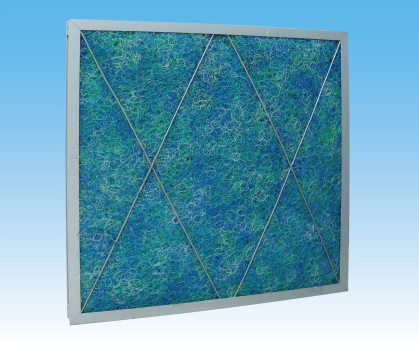

性能特点Features
外框: 镀锌框，铝框，或不锈钢外框
滤料: 特制的树脂纤维，可净化空气，亦可净化污水，
阻力低，可反复清洗，经济性高，强度好，耐冲击
效率：（EN779:2002）G4,F5；
（ASHRAE 52.2:2007MERV7,MERV8。
建议终压损：250Pa。
Frame:Galvanized frame, aluminum frame, stainless steel frame
Media:
Resin fiber，Acid, corrosion，Purify the air，Purification of sewage easy
to install and maintain ,High absorb capacity ,nice performance ,low
operation Cost，low resistance，Reusable cleaning, long life
Efficiency:(EN779:2002 filter class)G4，F5
(ASHRAE 52.2:2007 filter class)MERV7,MERV8
Recommended final pressure drop:250Pa.
应用Applications
工业级空气通风设备之初级过滤
有酸碱的环境系统中使用
污水处理厂净化污水
The primary filter of industrial-grade ventilation systems
Need the system of acid and alkali
Sewage treatment
常用规格 Common Specifications
型 号 Model | 外形尺寸Dimensions | 额定风量 Rated Air Flow (m3/h)
| 初始压降 Initial Pressure Drop (Pa)
| |
宽×高×深(mm) | ||||
SMV-1000*1000*50 | 1000X1000X50 | 4000 | 55 | |
SMV-1000X1000X30 | 1000X1000X30 | 4000 | 50 | |
SMV-500X500X50 | 500X500X50 | 1000 | 55 | |
SMV-500X500X30 | 500X500X30 | 1000 | 50 |
Model | Dimensions | Rated Air Flow (m3/h)
| Initial Pressure Drop (Pa)
| |
W×H×D(mm) | ||||
SMV-1000*1000*50 | 1000X1000X50 | 4000 | 55 | |
SMV-1000X1000X30 | 1000X1000X30 | 4000 | 50 | |
SMV-500X500X50 | 500X500X50 | 1000 | 55 | |
SMV-500X500X30 | 500X500X30 | 1000 | 50 |
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
上海新锐过滤材料有限公司
